BIG SIZE EL

Maximum dimension of sign we can produce in one panel is within 100cm x 200cm for fully lit-up animated sign                   and 120cm x 240cm for partially lit-up animated sign.
For the larger size panel over 120cm x 240cm, we will combine several panels together to make a whole display.

STAGE 1:  PRE PRODUCTION

When we receive artwork we can do sketch map according to details of design  and production needs.

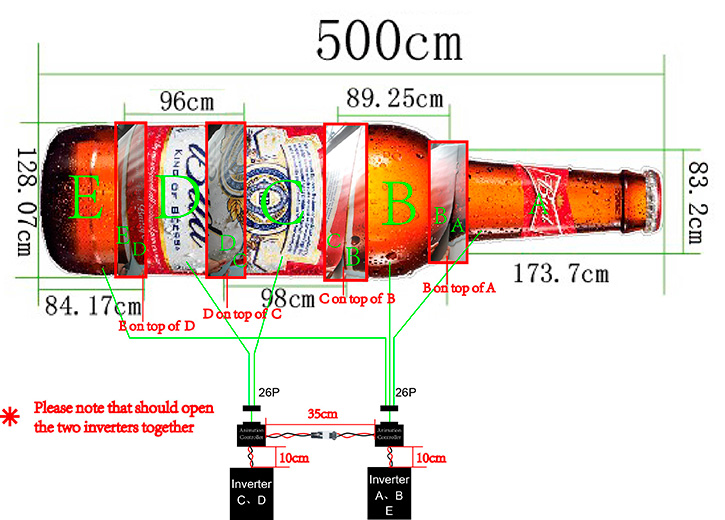

In sketch map we can see all sizes, each parts of EL panels wich will  be combined to whole project, points of cable connections and how many inverters will control each group of panels.

STAGE 2:  PRODUCTION

Depends of customers needs and conditions of using we provide  many options: waterproof, UV-protection, self-adhesive tape on the back side of panels, extra  lenght of cable, motion sensor or  day-night sensor.

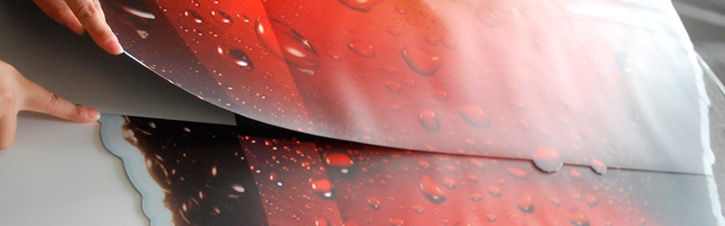

PART "B" on top of PART "A"

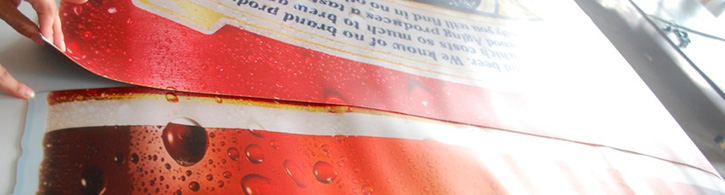

PART "C" on top of PART "B"

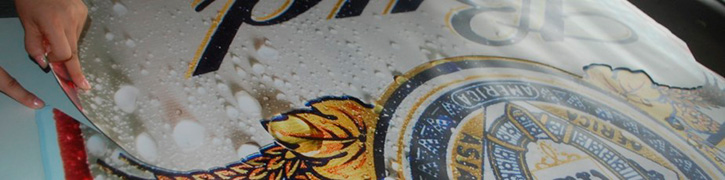

PART "D" on top of PART "C"

We use laser cutting machine and can do any shape of panel, it help us to do the best visual effect in  place where panels will be combined.

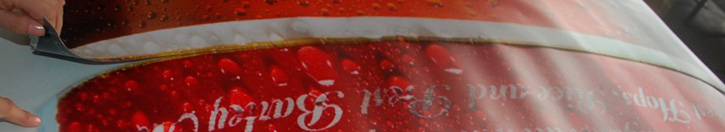

PART "E" on top of PART "D"

STAGE 3:  TESTING

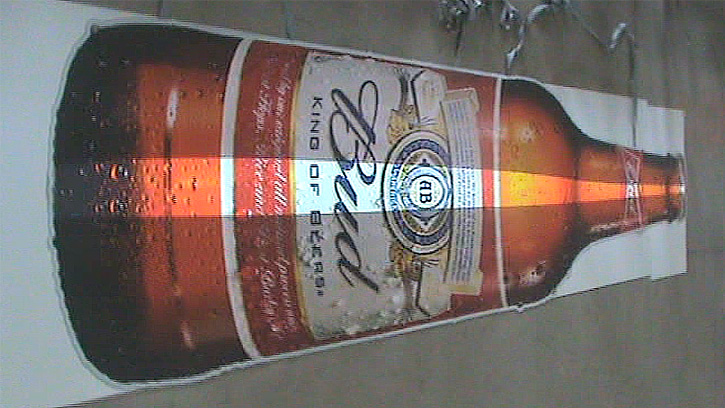

When production was finished, all parts (EL Panels) will be tested in factory during  24 hours as complete (ready to use) solution.

STAGE 4. SITE PREPARATION

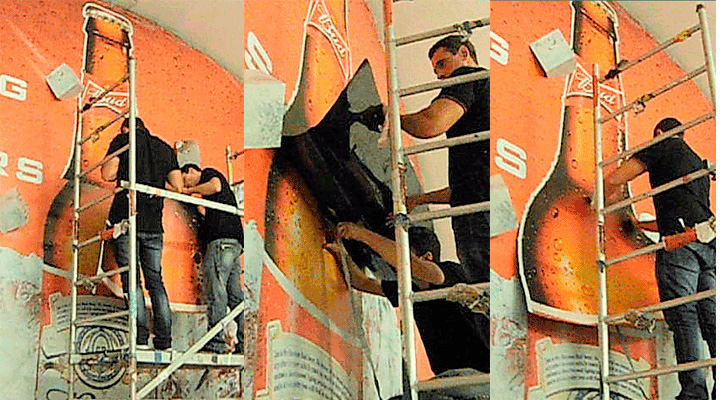

We provide to our customers already tested, well packed and easy to install solutions based short instruction. Installation can be done by 2 people from advertising agency or company focused on service for outdoor advertising constructions.

Before installation make sure all boxes was transported to site  no wet and  no have damages or water inside. Please use packing list for check all parts, cables and  inverters before start of installation. The power switch on inverter should be "OFF", please  don`t  connect inverters to power source  before installation will finished.

STAGE 5.  INSTALLATION

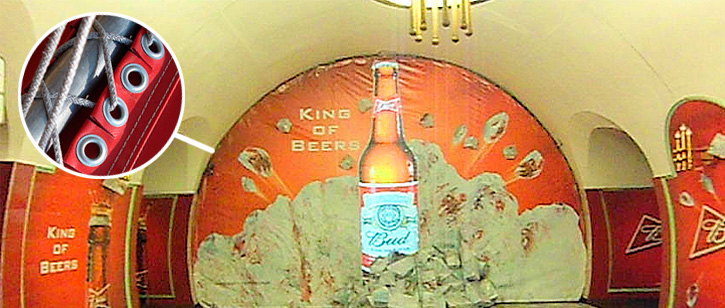

"A", "B" "C", "D", "E" parts should be mounted on vinyl banner:

5.1. Place part "A" on to vinil  according to design,  where part "A" should be mounted. Check point of cable connection on the vinyl surface and make small hole using knife. You need Input cable inside hole and put all cable of part "A" behind vinil baner.

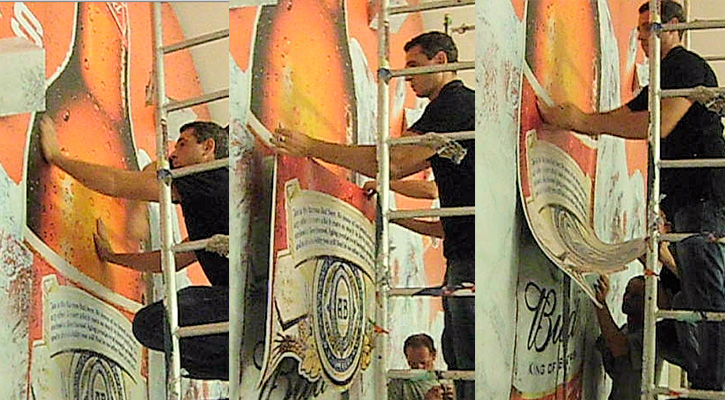

5.2. Remove  protection paper from the back side of  part "A" and mount  EL panel  (with self adhesive tape on the back side) to vinyl baner according to design.

5.3.The panel should fit snugly to the surface of the banner, when mounting the panel do not allow twisting, folding or damaging EL panel. Make sure that the cable connection was placed well not stretched and  not damaged. The edge of panel after istallation should not be curled.


5.4. Repeat  steps (5.1, 5.2, 5.3)  for parts "B", "C", "D", "E".

5.5.When all panels was installed,  use sketch map for check connections between panels and inverters. Each connecter marked by label of connection. Each label  on the  "INPUT" connector should be strongly  the same as label in  "OUTPUT" connector.

5.6. Before first start, make  sure the inverters installed well, have good conditions for heat removing. If whole display controled by more then one inverter, please set switch on the all inverters to "OFF" and connect  inverters to one power hub for ensure synchronization on start.


STAGE 6.  FIRST START

Set switch to "ON" and start amazing BIG SIZE EL. Enjoy!
