EL STICKER

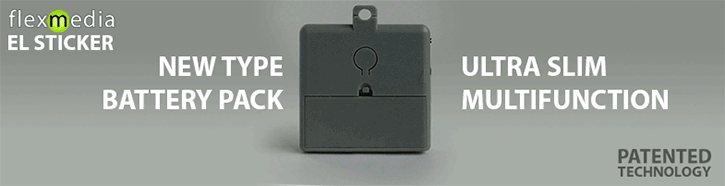

EL STICKER -is  an  thin, highly flexible graphic panel can be easy mount on to the shirt, backpack, cap or other clothes or surfaces.  EL STICKER  has a ultra slim battery pack that fits between panel and surface of installation. The battery pack unit has an ON/OFF switch, a small built-in sound sensor  with adjustable sensitivity,  which allows the user to adjust the way the panel reacts to louder or softer sounds. Also you can use switch button to select different modes of animation: sound activated or one of five fixed flash programs.  The 2 X AAA batteries will last for up to 20 hours. Also, EL STICKER have 6V input and can be powered by 6V AC/DC adaptor - this option is very suitable for   POS solutions.

Unique design of battery pack allow easy connect EL STICKER to battery pack and  hide connector inside box. This way we can ensure using two parts as one, and exclude addition cables and limitations : flat cable, hole in t-shirts, pocket for battery pack, tunnel  for flat cable etc,

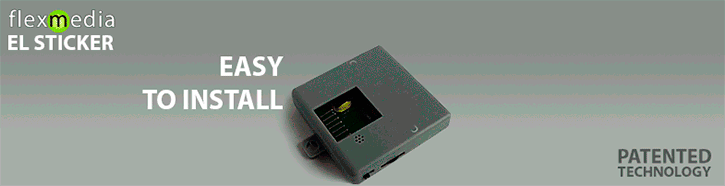

The procedure of   installation is very easy and fast.

1. remove  paper  from the two self-adhesive strips on the battery unit from the side where placed connector dock.

2.Turn back side of EL sticker to side where placed connector dock.

3.Connect connector from EL STICKER to connector  inside dock on the battery unit.

4. Fix  back side of  panel to the body of   battery unit .

5.Open battery dock and put 2 pcs of AAA according to  marked "+"  and "-". Turn  ON .


We provide many types of solutions for mounting EL STICKER. You can install EL STICKER to t-shirts or other clothes used VELCRO or  CLIP. If you need badge you can use PIN or RIBBON. For POS solutions  EL STICKER can be mount to any surface by double sided self-adhesive tape. For more details please refer to videos below.

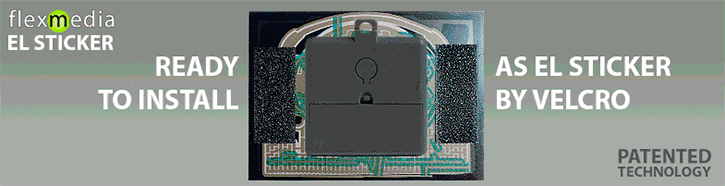

EL STICKER installed by VELCRO


EL STICKER installed by CLIP


EL STICKER installed as EL BADGE by PIN


EL STICKER installed as EL BADGE by ribbon
